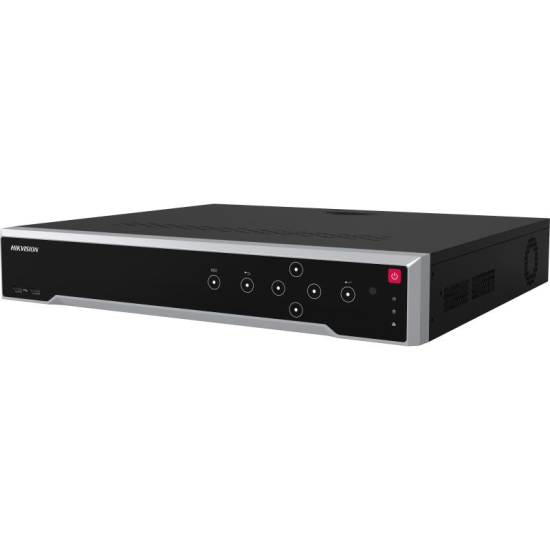

DS-7732NI-I4 24P Hard disk recorder & Worldwide NetDVR Elite - Engineered for Reliable Video Recording

DS-7732NI-I4 24P Hard disk recorder & Worldwide NetDVR Elite - Engineered for Reliable Video Recording
INQUIRY PRODUCT
DS-7732NI-I4 24P Hard disk recorder & Worldwide NetDVR Elite - Engineered for Reliable Video Recording
$500.00
  • Stock: In Stock
  • Model: DS-7732NI-I4-24P
This product is customized according to User Requirement , the above price is for reference, please contact us.

DS-7732NI-I4/24P NVR

Key Feature
H.265+/H.265/H.264+/H.264 video formats
Up to 32-ch IP camera inputs
Up to 2-ch@12 MP/16-ch@1080p decoding capacity
Up to 320 Mbps incoming bandwidth
Professional and Reliability
H.265+ compression effectively reduces the storage space by up to 75%
Dual-stream recording saves bandwidth
Adopt stream over TLS encryption technology which provides more secure stream transmission service
Support double verification for playback and downloading
HD Video Output
Provide independent HDMI and VGA outputs
HDMI video output at up to 4K resolution
Storage and Playback
Up to 4 SATA interfaces for HDD connection
16-ch synchronous playback
Smart & POS Function
Support multiple VCA (Video Content Analytics) events
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
24 independent PoE network interfaces
1 self-adaptive 10/100/1000 Mbps Ethernet interface
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Smooth streaming technology
Support web access without plug-in

 Specification

Model DS-7732NI-I4/24P
Video and Audio
IP video input 32-ch
Up to 32 MP resolution
*:After ultra HD resolution mode is enabled,the NVR supports up to 4-ch 32
MP/24 MP IP video inputs.
Incoming bandwidth 320 Mbps
Outgoing bandwidth 256 Mbps
HDMI1 output 4K(3840×2160)/60Hz,4K(3840×2160)/30Hz,1920×1080/60Hz,1600×
1200/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
HDMI2 output 1920×1080p/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
VGA output 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Video output mode HDMI1/VGA simultaneous output,HDMI2/VGA independent output
CVBS output 1-ch,BNC(1.0 Vp-p,75 Ω),resolution:PAL:704×576,NTSC:704×480
Audio output 1-ch,RCA(Linear,1 KQ)
Two-way audio input 1-ch,RCA(2.0 Vp-p,1 KQ,using the audio input)
Decoding
Decoding format H.265+/H.265/H.264+/H.264/MPEG4
Recording resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*:After ultra HD resolution mode is enabled,the NVR supports up to 4-ch 32
MP/24 MP IP video inputs.
Synchronous playback 16-ch
Capability 2-ch@12 MP(20 fps)/4-ch@8 MP(30 fps)/8-ch@4 MP(30 fps)/16-ch@1080p(30 fps)
Dual stream recording Support
Stream type Video,Video &Audio
Audio compression G.711ulaw/G.71lalaw/G.722/G.726
Network
Remote connections 128
Network protocol TCP/IP,DHCP,IPv4,IPv6,DNS,DDNS,NTP,RTSP,SADP,SMTP,SNMP,NFS,iSCSI,
SUP,UPnPM,HTTP,HTTPS
Network interface 1,RJ-4510/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 24,RJ-4510/100 Mbps self-adaptive Ethernet interface
Power 210 W
Supported standard EEE 802.3 af/at
Auxiliary Interface
Serial port 1 RS-485 (half-duplex),1 RS-232
SATA 4 SATA interfaces
Capacity Up to 10 TB capacity for each disk
eSATA 1 eSATA interface
Alarm in/out 16/4(16/8 optional)
USB interface Front panel:2×USB 2.0;Rear panel:1×USB 3.0
Genera
Power supply 100 to 240 VAC,50 to 60 Hz
Consumptior
without HDD and PoE off
20 W
Working temperature -10° to 55 °C(14F to 131°F)
Working humidity 10%to 90%
Dimension (W×D×H) 445×400×75mm(17.5"×15.7"×3.0")
Weight (without HDD) 5 kg(11lb)
Certification
FCC Part 15 Subpart B,ANSI C63.4-2014
CE EN 55032:2015,EN 61000-3-2,EN 61000-3-3,EN 50130-4
