40.5kV Three-phase AC 50Hz outdoor HV electrical apparatus SF6 Circuit Breaker Live Tank

40.5kV Three-phase AC 50Hz outdoor HV electrical apparatus  SF6 Circuit Breaker Live Tank
INQUIRY PRODUCT
40.5kV Three-phase AC 50Hz outdoor HV electrical apparatus SF6 Circuit Breaker Live Tank
$2,500.00
  • Stock: In Stock
  • Model: LW8A-40.5
This product is customized according to User Requirement , the above price is for reference, please contact us.

General

Application: three-phase AC 50Hz outdoor HV electrical apparatus with CT14 spring operating mechanism, for control and protection of 40.5kV power

system as well as communicating with circuit breaker. Current transformer inside as well for measuring and protection.

Standard: lEC 62271-100.

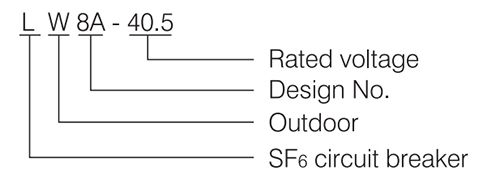

Type Designation



Working condition

1 Sunlight: 1000w/m2

2 Relative humidity: Daily average value is <95%, Monthly average value is <90%

3 Max wind velocity: 34m/s

4 Seismic: Horizontal acceleration: 0.250g, Vertical acceleration: 0.125g

5 Pollution level: III (25 mm/kV)

6 Thickness of ice covering: 10 mm (when wind speed 15m/s)

7 Protection degree: IP5XW

※ Note: Customized products are available.



Technical Parameter

Main Technical Parameter of Circuit Breaker

ltem Unit   Parameter
Altitude m   1000  2000
Ambient air temperature -30~40 -40~40 -30~40 -40~40
Rated voltage kV   40.5  40.5
Rated frequency Hz   50  50
Rated current A   2000  2000
Rated short-circuit breaking current for Isc kA   31.5    25  31.5    25
Rated short-time withstand current/continuous time kA/s   31.5/4   25/4 31.5/4   25/4
Rated peak withstand current (peak) kA   80    63  80    63
Rated short-circuit making current (peak) kA   80    63  80    63
First-pole-to clear factor   1.5  1.5
Rated out-of-phase breaking current kA   Isc×25% Isc×25%
Power trequency withstand voltage for  1min Open contacts kV   95+24   95  95    95
To earth   95    95  95    95
Lightning impulse withstand voltage (peak) Open contacts kV   185+33   185  185    185
To earth   185    185  185    185
Rated operating sequence   O-0.3s-CO-3min-CO



Technical requirement:

1. Weight: 1000kg (with gas); total weight of gas: 5kg.

2. Foundation loading: static state 1000kg; dynamic state: horizontal direction: 1300kg; vertical direction (upon): 2000kg

3. Concrete surface levelness: <1.5mm.

4. Every circuit breaker can be fitted with 12 bush current transformers



Ordering Information

Please specify the following items when ordering:

1. Model.

2. Rated electric parameters.

3. Service environment conditions.

4. Voltage of control supply.

5. Quantity,ratio, capacity, and accuracy of current transformers.

6. The quantity of necessary spare parts, accessories, special tools and equipments.

Note:Customized products are available.
