220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism

220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism
220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism
220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism
INQUIRY PRODUCT

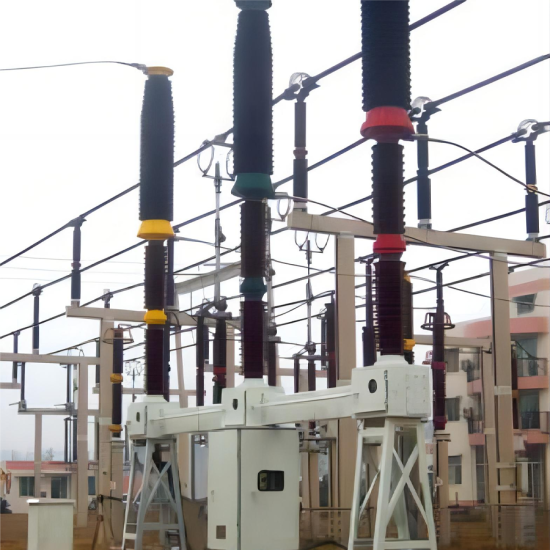

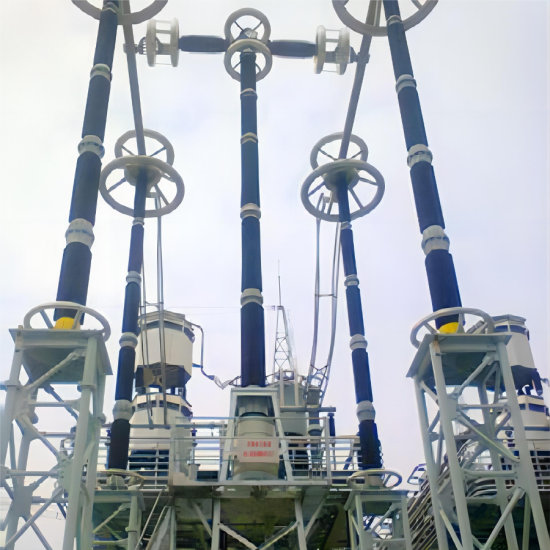

220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism
220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism
220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism
220kV-Outdoor H.V.A.C.Live Tank SF6 Gas Circuit Breaker-Spring mechanism-Outdoor High-Voltage Switchgear-High-Voltage Spring Energy Storage Mechanism
$64,300.00
  • Stock: In Stock
  • Model: LW25-252/T
This product is customized according to User Requirement , the above price is for reference, please contact us.



General

Live tank SF6 gas circuit breakers, whose rated voltage from 40.5kV to 550kV and rated current from 3150A to 5000A are provided with two kinds of operating mechanism, spring and hydraulic type. Motor is used in spring mechanism to charge closing spring and to charge opening spring during closing operation. Disk spring is used in hydraulic mechanism for charging instead of traditional compressed nitrogen gas, and hydraulic driving is used in both opening and closing operations. The two kinds of operating mechanism have their own eatures and are used respectively for different voltage class. Due to the unit structure of circuit breaker, it boasts of advantages of minimized number of breaks and components, simple structure, high reliability as well as long maintenance-free period.

Normal Service Conditions

   Altitude:≤1000m3000m for extremely cold area);

   Average relative humidity monthly:≤90%

   Max. wind velocity:≤35m/s

   Pollution class:Ⅲclass,class

   Ambient temperature -35℃~40℃;(Its satisfied under the condition of -40 in heavy cold area)

   Max.temperature difference daily25K

   Earthquake intensity9 degree

   Max. icing thickness: 20mm;

   Max. radiance from sun1000W/m2

Note: When the product is used out of above condition, the user and the manufacturer shall reach an agreement through coordination.

Main Technical Data

Technical Data of 40.5~252kV Circuit Breakers

No. Item Uint LW9-40.5/T LW9-72.5/T LW9A-72.5/T LW25-126/145/T
LW25D-126/145/T
LW25□-126/145/T
LW25-170Ⅰ/P LW25-170Ⅲ/P LW25-252/T LW25A-252/Y LW15C-252/Y
1 Rated voltage kV 40.5 72.5 126/145 170 252 252
2 Rated frequently Hz 50 50 50 50 50 50
3 Rated current A 3150/4000 3150/4000 3150 3150 4000 4000,5000
4 Rated short-circuit breaking current kA 50 31.5/40 31.5/40 40 40,50 63
5 Rated short-circuit making current kA 125 80/100 80/100 100 100,125 160
6 short-time withstand current and duration kA 50(3s) 31.5(4s)/40(4s) 31.5(4s)/40(4s) 40(3s) 40(4s),50(4s) 63(3s)
7 Rated peak withstand current kA 125 80/100 80/100 100 80/100 160
8 Creepage distance cm/kV 3.1 3.1 2.5/3.1 2.5,3.1 2.5,3.1 2.5,3.1
9 1min.power frequency withstand voltage
Dry test
Across open breaks kA 95+23.4 160+42 230+95 325 460+145 520+165/520
To earth 95 160 275 325 460 460
Wet test Across open breaks 95 160+42 230+95 325 460+145 460+145
To earth 95 160 275 325 460 460
10
Rated lighting impulse withstand voltage
Across open breaks   185+33 350+59 650+100 750 1050+200 1188+226/1188
To earth   185 350 650 750 1050 1188
11 Closing time ms 100 100 100 80-110 100 55-80
12 Opening time ms ≤30 ≤30 ≤30 21-30 ≤30 ≤25
13 Breaking time ms ≤60 ≤60 ≤60 ≤60 ≤60 ≤60
14  CO time ms ≤60 ≤60 ≤60 ≤60 ≤70 ≤60
15 Rated SF6 gas pressure(at 20℃) MPa 0.50 0.50;0.40 0.50 0.60 0.60;0.40 0.60
16 Rated SF6 gas of alarming/lockout pressure (at 20℃) MPa 0.45/0.40 0.45/0.40;0.35/0.30 0.45/0.40 0.55/0.50 0.55/0.50;0.35/0.33 0.55/0.50
17 Operating mechanism   Spring mechanism Spring mechanism Spring mechanism Spring mechanism Spring mechanism /
Hydraulic mechanism
Hydraulic mechanism
18 Applied standards   GB/T 1984,IEC 62271-100
Note:“T”following the type of product means that the product is equipped with a  Spring mechanism;“Y”with a hydraulic operating mechanism.

LW25D-126/145/T is a kind of 126/145kV single-phase operated circuit breaker.
LW25□-126/T is a special circuit breaker for reactive compensation circuit.
LW25A-252/Y is a kind of 252kV three-phase mechanically gang-operated circuit breaker.

Spring Operating Mechanism for CB

No.  Item  Unit  Technical Data
1 Volage of control circuit V DC 220/DC 110
2 Current of trip coil A 2~2.5/5.8
3 Current of close coil A 2/3.3
4 Voltage of energy-store motor V DC 220/DC 110(AC 220)
5 Power of energy-store motor W 450
6 Voltage of heater V AC 220
7 Power of heater W 100

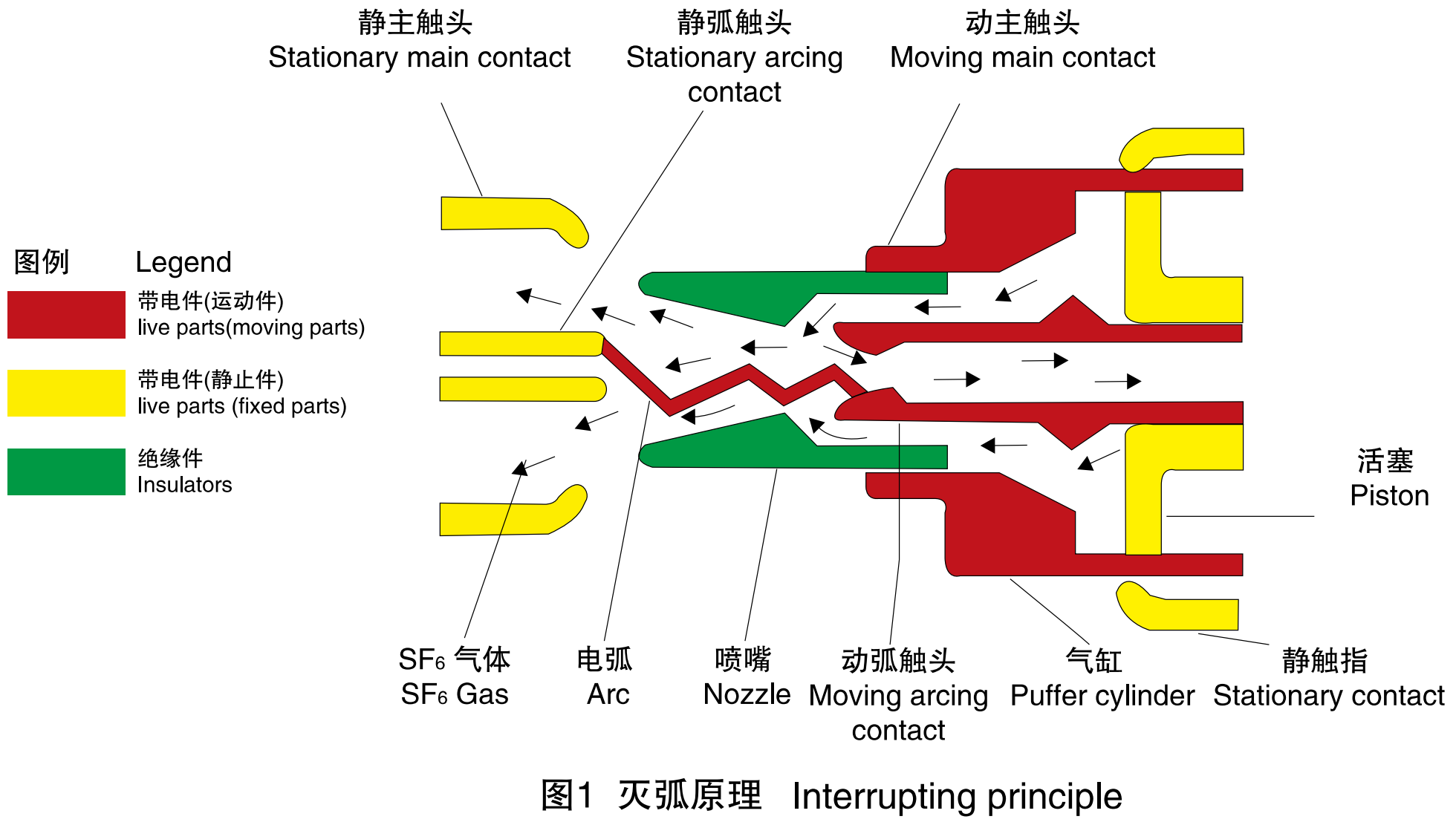

Structure and Principle

For this SF6 circuit breaker, the single-unit structure is applied in the construction. There are advantages of minimized number of breaks and parts, and simply structure.

Both opening and closing operations of spring mechanism are driven by spring force. Before operation, closing spring is charged by motor in advance while opening spring is charged during closing operation. The controlling parts of second circuit and SF6 gas density are placed in the enclosure of the mechanism.

Main Features and Advantages

5.1 Superior interrupting capability

Single-unit structure is applied in the construction of circuit breaker with variable break distances, which is able to meet different switching requirements. The well designed arc-extinguishing chamber can withstand either severe rising rate of the recovery voltage by a short-line fault or peak recovery voltage by breaking out-of - phase current. In switching excited current, the overvoltage is less than twice of operating voltage. No restrike or reignition occurs during switching line-charging current.

5.2 Reliable insulation and current-carrying capability

Because of the isolation of SF6 gas from the atmosphere, the breaker has a reliable insulating capability.SF6 gas property does not change with age and at the same time it protects the insulating parts within the gas chamber. It also prevents the contacts from oxidization and other chemical reactions as SF6 gas is stable and inert in nature when it is used together with other materials.

5.3 High reliability

The series of circuit breakers passed all type tests at National High Voltage Apparatus Quality Monitor and Inspection Center. The mechanical endurance is 3000 times without adjustment and 10000 times with lubrication and adjustment allowed. They also passed the electrical endurance test, breaking 20 times at rated short-circuit breaking current (40kA/50kA/63kA) during type tests.

5.4 Minimized maintenance work

The circuit breaker is constructed by unit structures, resulting in minimized number of breaks and parts, thus greatly reduces the inspection and maintenance work. In addition, its operating mechanism boasts advanced technology and excellent performance, the circuit breaker hardly needs any repair.

5.5 Excellent earthquake withstand capability

The live tank SF6 gas circuit breaker is substantially resistant to seismic shock due to its simple construction and light weight

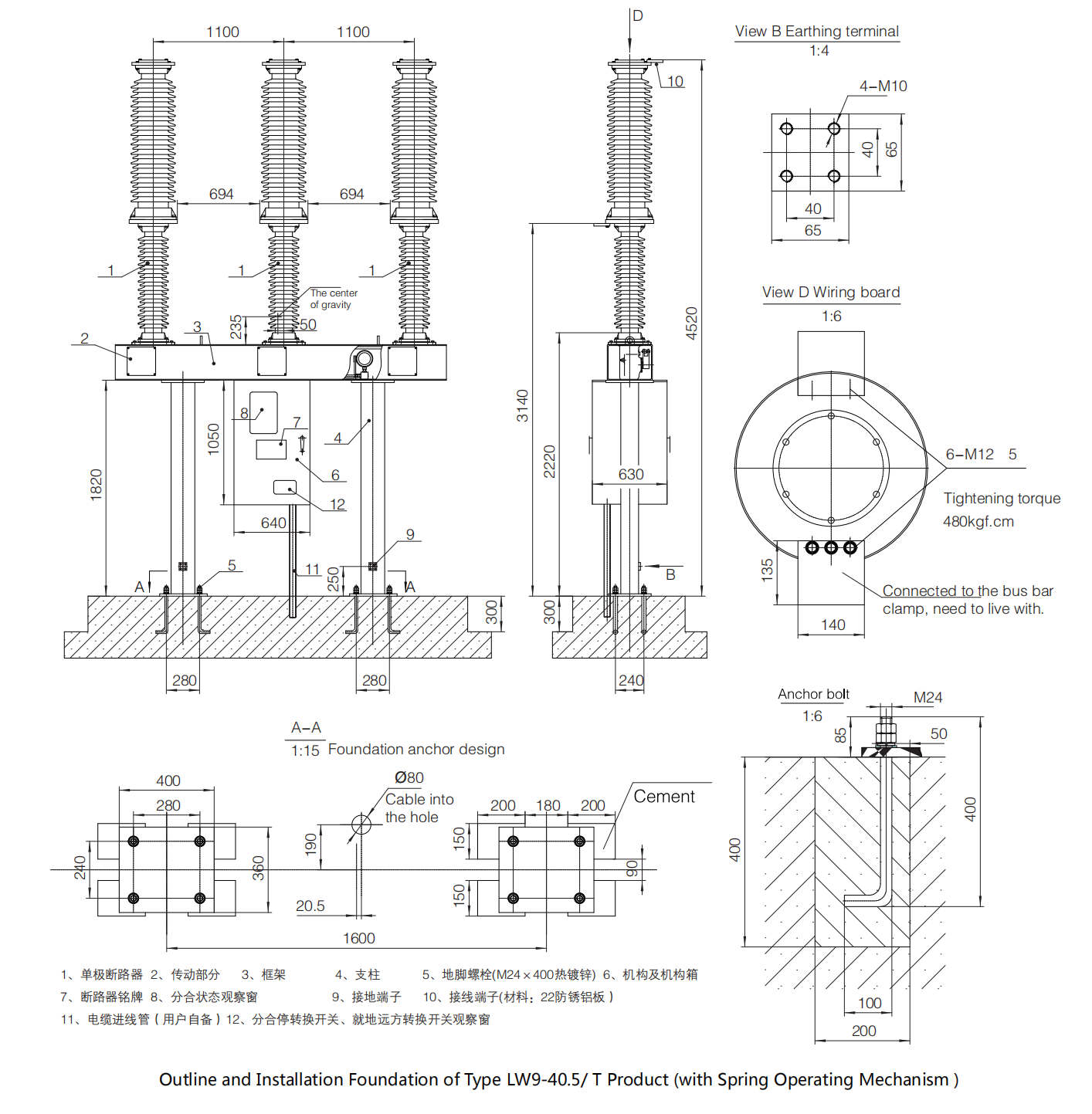

Outline and Installation Drawings

Please give clear indication when ordering:

. Type, description of product, and type of mechanism.

. Rated voltage, rated current, short circuit breaking current.

. Pollution class of porcelain: class or class.

. Control voltage of mechanism: DC220V or DC110V.

Voltage of energy-store motor: AC380V or AC/DC 220V or AC/DC 110V.
